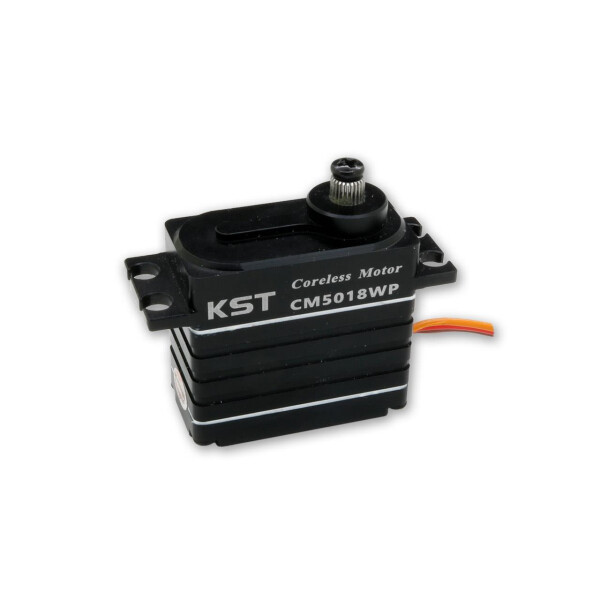

Produktinformationen "CM5018WP V6.0 50kgf.cm@8,4 Volt IP68"
CM5018WP Technische Details:
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Stalling Torque: 35Kgf.cm@4.8V
40Kgf.cm@6.0V
45Kgf.cm@7.4V
50Kgf.cm@8.4V
Speed: 0.25sec/60°@4.8V
0.23sec/60°@6.0V
0.20sec/60°@7.4V
0.18sec/60°@8.4V
Start Current: 4.68A@4.8V
5.70A@6.0V
7.25A@7.4V
8.15A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10?……+65?
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP68
Case Dimensions: 40.5mm*20.5mm*41.3mm±0.2mm
Weight: 80g±10%
